Depending on the final enclosure to protect the splices Moisture proof or Water Resistant Materials including Properly sized wire connectors anti-corrosion ointment electrical tape shrink tubing or other materials to perform an approved splice. Two Splice Kits.
3m Cold Shrink Joints On High Voltage Xlpe 34 5kv Windfarm Cables
Underground splice kit.
Underground wire splice. One important factor is that the type of splice should be correctly matched with the type of cable Mackevich 1988. Heat-shrinkable tubing and gel-filled shield. The Underground UF Splice Kit accommodates waterproof splicing of 14 - 8 AWG UF copper wire.
All you need to do is follow a few simple steps. Making Underground Cable Splices Accessible Question. Available in a variety of packaging options look to Gardner Bender for secure wire connection options.
To tap into an existing wire with a connector simply cut the cable where it needs to be spliced. 200-A elbows have failed at high rates and they tend to fail when switching under load Champion 1986. But they differ in how they protect the splice.
Strip both ends as well as the end of the new cable you want to add. Center the tube over the splice so a minimum of 2 inches of tubing will seal to each cable jacket. With a soft-flame torch begin at the center and heat slowly around the radius moving progressively to each end.
Identify the affected power source turn it OFF and then Tag it with a Note before performing any wire splicing or cable repairs. Both use a brass splicing block to connect the wires. Length of heat-shrinkable tubing filled with watertight hot-melt adhesive.
This in-line closure offers a fast and simple method for splicing insulating and environmentally sealing low voltage cable splices. Place a wire nut of the appropriate size onto the three cables. Ad Edit MP4DVDMTSMKVVOBAVIWMV Video etc.
Since you want to go the last 10 feet in direct burial wire you will need to bury at 24 which means actually 14 and the descent to 2 depth at both ends also needs to be in conduit solely as wire physical protection. Qualified to ansi c119. Install the electrical splice.

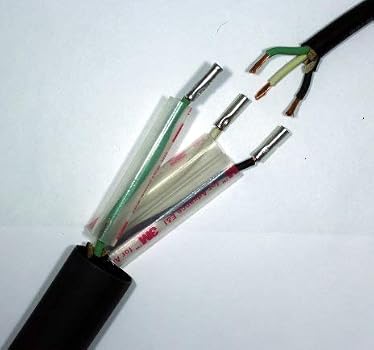

Place the tube over one of the cable-ends before splicing. Another consideration for underground circuits is the performance of connectors and other cable accessories. Splicing an underground wire with butt connectors and heat shrink tubing.
Ad Edit MP4DVDMTSMKVVOBAVIWMV Video etc. Trying to establish a splice point at the old location will be rather difficult and not worth doing given the low cost of wire. I hit an 2 conduit that we could not locate with a trencher breaking the conduit and pulled about 40 of 30 THHW coated neutral wire out of the conduit.
Can I pull a new length of 30 into the conduit and splice it to the undamaged portion of cable. 350 MCM 6 STR 500 MCM 2 STR NAED NUMBER 71005 71010 CATALOG NUMBER US 350-K US 500-K CONNECTOR LENGTH IN 3 33 16 Dual-Rated 600V Direct Burial Submersible watertight insulation splice kits Re-enterable EPDM rubber cover Eliminates taping in above-ground. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test.

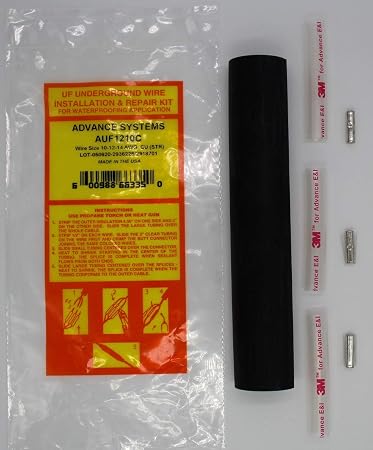

SPLICE COVER R20 R35 R50 R100 UNDERGROUND IN-LINE WIRE SPLICE KITS WIRE RANGE MAX. Connector set screws engage each wire securely for a solid splice. The most common type of kit protects the splice with an 8-in.
Sometimes things can go wrong with buried outdoor cables especially when lawn tools are involved. When it turns out that something has cut one or your underground wires you can use a splice kit to fix it. The easy-splice in-line gel splice kit provides a sealed splice for underground buried and overhead applications.
Underground AC splice kits come in two varieties. Gardner Bender Underground UF Splice Kit with Heat Shrink Tubing-HST-1300 - The Home Depot Provide waterproof protection to secure connections ad wires by selecting this Gardner Bender Underground UF Splice Kit. Twist the wire nut in place and ensure that the wires are not coming out.
1 -1986 for underground splicing.
